This page is about the Micrio dashboard version 3 (2024), which is the latest version. Use the link below to navigate to the previous version.

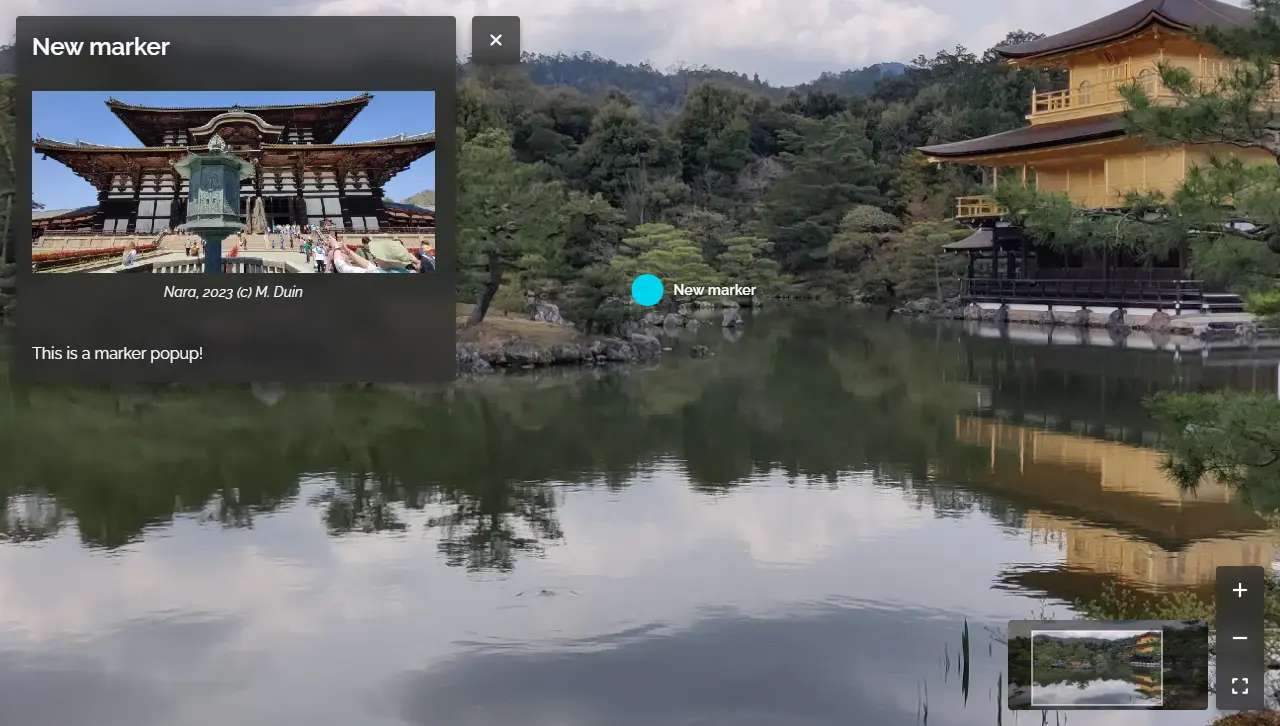

Marker popup in the viewer

Markers are a powerful way to tell the story behind your images. A marker (or hotspot) can represent different data about an area or detail of the image.

A marker manifests itself as a clickable, button on top of the image. What happens when you click, can be several things:

  • A popup can open with text, audio, images
  • A full-window popover can open showing a full size video
  • A custom page can be opened
  • Or, using JavaScript, you can let it trigger any custom action inside your own website.

Adding a marker ​

Click the "Create New Marker" button in the right panel, and then click the position in the image where you want to create it.

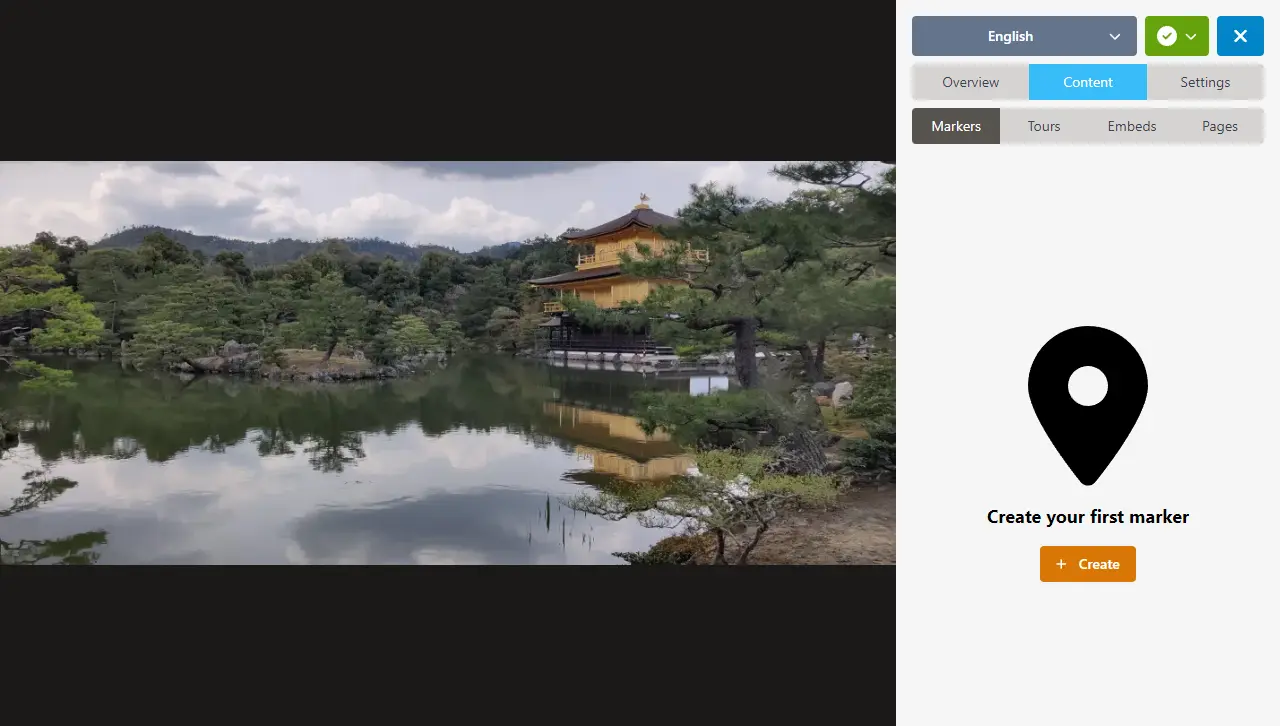

Create a new marker

How to edit a marker ​

To edit a marker, first select the marker that you want to edit in your image, or from the list in the left panel, and then the editor panel will be shown.

After creating a new marker or selecting an existing one, the opened marker will light up in the image itself.

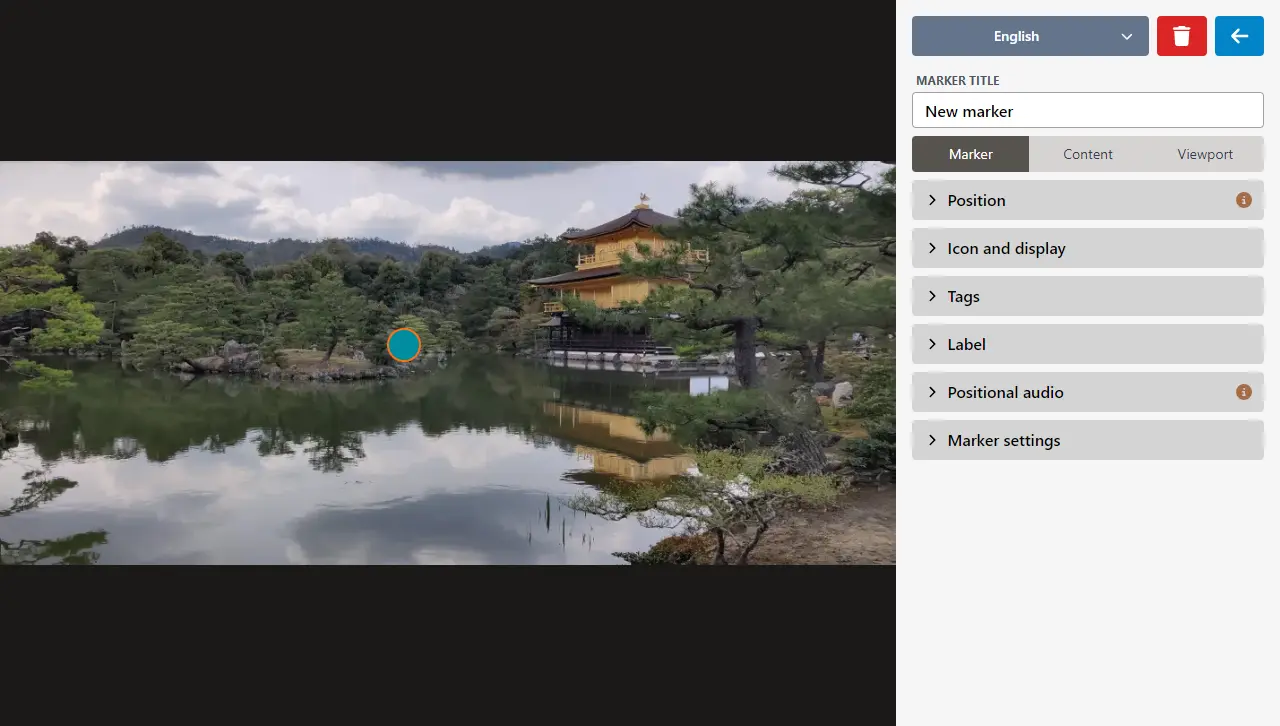

Opening a marker

When a marker is opened, you can freely move it to any other location in the image.

Marker setting panels ​

Marker settings panel

The panel on the right shows the selected marker settings and has 3 tabs:

  • Under Marker (the default tab), you can set the marker's in-image element options, such as position and icon.

  • Popup content contains the marker popup content settings. You can add text, photos, videos, and even embeds from YouTube or Vimeo.

  • Under Advanced you can set a custom CSS classname to style the marker and popup, create a video tour that starts playing when the marker is opened, and add custom JSON that will be published with the individual marker.

Styling Markers ​

Markers are incredibly versatile objects. By default, they simply show a popup that has information. But you can do much more with them -- they can also be used as internal links to other Micrio images, or to activate custom behavior inside your own implementation.

See this page for a guide to use CSS to style your markers.
